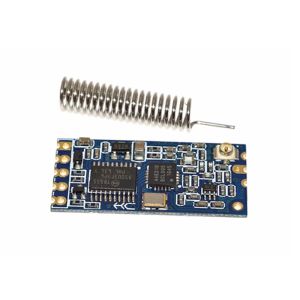

Blue 433Mhz SI4463 HC-12 Arduino Wireless Module For Open Source Platform

Product Categories

Oky Newstar Technology Co., Ltd

Contact Now

Blue 433Mhz SI4463 HC-12 Arduino Wireless Module For Open Source Platform

Name: Blue 433Mhz SI4463 HC12 Arduino Wireless Module For Open Source Platform
Brand: OKYNEWSTAR
Price: 1 USD

Blue 433Mhz SI4463 HC-12 Arduino Wireless Module For Open Source Platform Manufactures

Brand Name : OKYNEWSTAR

Model Number : OKY3384

Place of Origin : Guangdong China(Mainland)

MOQ : 10 piece

Price : US $3.15 - 3.58/ Piece

Payment Terms : T/T, Western Union, MoneyGram, L/C, D/A, D/P,

Supply Ability : 10000PIECE PER WEEK

Delivery Time : 1-3 work days after payment

Packaging Details : Different package at optional: 1. Retailing Package:Anti-static bag 2. Bulking Packing:Plastic Bag Package 3. Retailing Box package design according to your requirement( Order > 3000PCS)

Product Name : 433Mhz SI4463 HC-12 Wireless Module

Board Chip : NE555, CD4017

Default communication distance : about 600 m

weight : 25g

Contact Now

Blue 433Mhz SI4463 HC-12 Arduino Wireless Module For Open Source Platform

Blue 433Mhz SI4463 HC-12 Wireless Module For Arduino Open Source Platform

Specification

Power supply voltage : 3.2 V -- 5.5 V.
(if the modules working long hours in emission state, suggested that when the power supply voltage is greater than 4.5 V , you need concatenating a 1N4007 diode to avoid module built-in LDO got fever)
Default communication distance : about 600 m
(communication distance is adjustable up to 1000 m, air baud rate 5000 BPS).
Default idle current: 16 ma
(modules in different working mode of different current).
Mini size,only 27.8mm*14.4mm*4mm.
Operating frequency range (433.4 473.0 MHz, as many as 100 communication channel) maximum 100 mw fired power (can be set)
Module supporting software upgrades.
Default factory Settings: working mode FU3, baud rate 9600 BPS, communication channel CH001 (433.4 M)

Package Included:

1pc SI4463 HC-12 Wireless Module

More Photo:

More product:

	UNO R3 + breadboard 400 point + 9V battery snap Starter Learning Kit		HC-06 Bluetooth Wireless Module
	Mega 2560 R3 ( CH340G )		HC-SR501 Human body Pyroelectric Infrared sensor PIR
	DC 5V Stepper Motor 28BYJ-48 + ULN2003 Driver Test Module		Ultrasonic Sensor HC-SR04
	LCD 1602 I2C module (Yellow Green light) ( Red board module)		20cm Male TO Female 40Pin Solderless Jumper Breadboard Wire

FAQ:
1. What is the delivery time?
Normally, 1-5 workdays after payment;
Special requirement orders, delivery time is negotiable.

2.If the products can’t work after receiving it,what should I do?
We will replace new items for you at once, and respect your final decision for wrong goods.

3.If the products don’t meet my demand after I received it,can I return it?
Yes,no problem.
You can return back to us, we will refund your full payment.
